Guidelines for Capturing 7 Images for NoviVision

• Lighting Conditions: Use even lighting to avoid shadows or reflections that obscure features.
• Distance: Maintain a camera-to-part distance of approximately 2 to 4 times the largest dimension of the part to ensure proper framing and avoid perspective distortion. Ensure the entire part fits within the frame without excessive empty space.
• Background: Place the part on a neutral, non-reflective surface. Remove additional objects in the background
• File Format: JPEG (JPG) or PNG
• File naming convention: [PartName]_[View]_Date.jpg (refer to the steps for selecting the appropriate view)

• Compress the images into a single folder named [Company Name]_[Part Name]_Date.

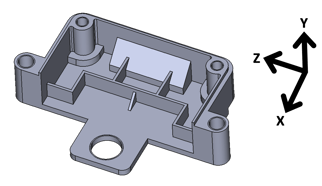

Steps 1 (View=3D)

Capture an image of the 3D view of the part, similar to the one below

Steps 2 (View=YZ+X)

Capture an image of the Y-Z (+X) plane, similar to the one below

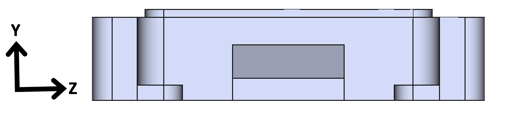

Steps 3 (View=YX-Z)

Capture an image of the Y-X (-Z) plane, similar to the one below

Steps 4 (View=YZ-X)

Capture an image of the Y-Z (-X) plane, similar to the one below

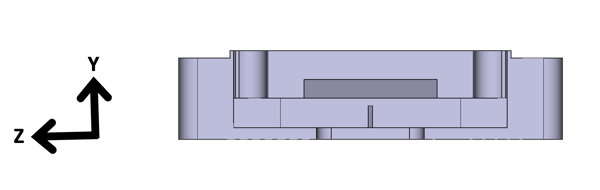

Steps 5 (View=YX+Z)

Capture an image of the Y-X (+Z) plane, similar to the one below

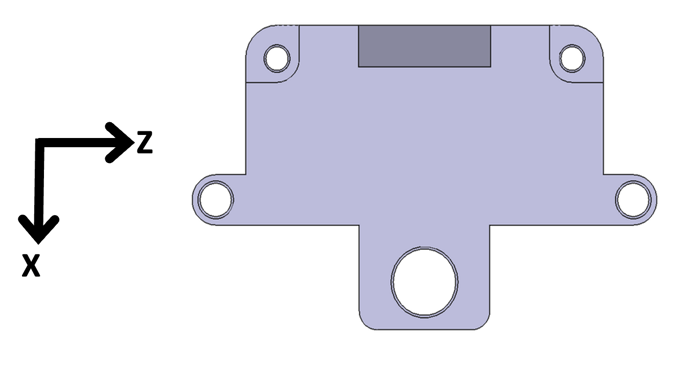

Steps 6 (View=XZ-Y)

Capture an image of the X-Z (-Y) plane, similar to the one below

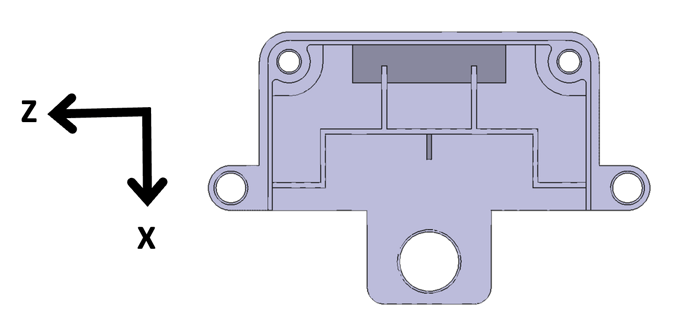

Steps 7 (View=XZ+Y)

Capture an image of the X-Z (+Y) plane, similar to the one below
